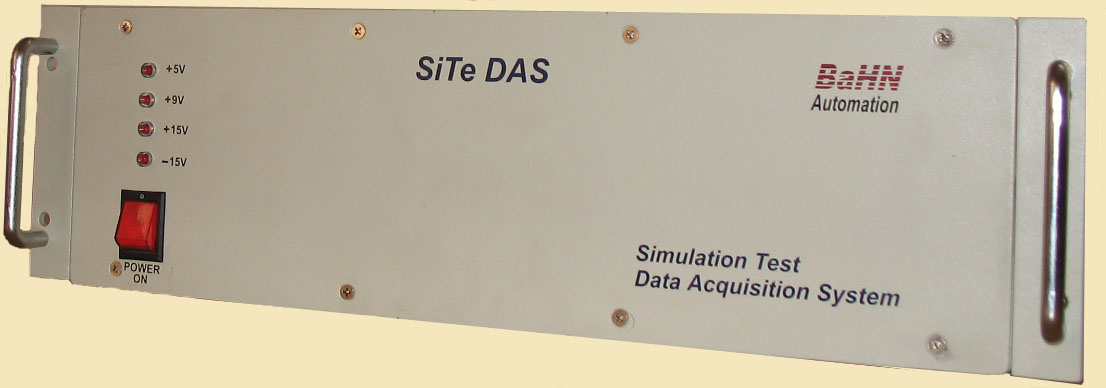

Simulation Test Data Acquisition System (SiTe DAS)

Application : Simulation & Flow Characterization Testing of Flight Components before Integration in Spacecraft

Features :

• Data acquisition from Digital & Analog Pressure Transducers, Flow Meters, Weighing Balances and Temperature Sensors
• Acquisition of data directly from sensors and also thro’ RS232/RS485 from Weighing Machines and Keller Pressure Transducers
• Conversion of acquired data to equivalent engineering units
• Configuration of data acquisition parameters viz., Communication parameters, Sensors & graph parameters, Data logging parameters
• Acquire and display acquired data through a suitable Graphical User Interface (GUI)
• Hierarchical pull-down menu for all operations with short cut keys
• Multiple pages of display, multiple charts per page and multiple channels/chart
• Zoom, Pan and Measurements options
• Data logging, storing with date & time stamp, compatible for processing in MS-EXCEL
• Status log and diagnostics
• Read from stored file and printing options
