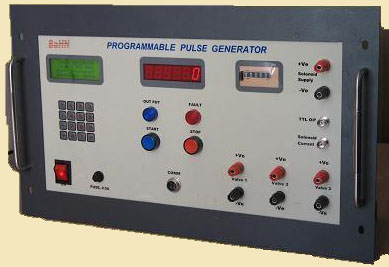

Programmable Pulse Generator

Application : Endurance & Performance Testing of Solenoid valves

Features :

• Testing of solenoid valves with Pulse or Continuous type of output
• Based on high performance, low power Micro Controller with RISC architecture
• Pulse ON / OFF time independently settable from 1 to 9999ms
• Pulse count settable from 1 to 999999.
• Configuration parameters can be easily set thro’ a Keypad along with MENU based LCD Display.
• High intensity 6-Digit LED Display is used for counting number of pulses.
• 6-Digit Electro-Mechanical Counter is also be used for counting number of pulses as it retains the count in case of power failure
• Built-in solenoid valve driver circuits for driving valves rated for 42Vdc, 3A.
• Over current / Short circuit and driver device failure protections
• Provision for monitoring Pulse Output (TTL) & Solenoid Valve current
