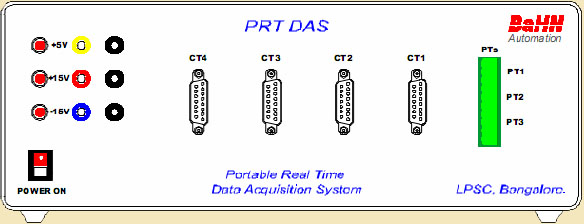

Portable Real Time Data Acquisition System

(PRT DAS)

Application : Qualification Testing of CRYO Temperature Transducers

Features :

• Data acquisition from Pressure Transducers (3nos.) and Cryo Temperature Transducers (12nos.)
• To measure response time of Cryo Temperature Transducers
• To provide highly stable excitation current of <0.5mA to Cryo Temperature Transducers
• Conversion of acquired raw data to equivalent engineering units
• Configuration of data acquisition parameters viz., Sensors & graph parameters, Data logging parameters
• Acquire and display acquired data through a suitable Graphical User Interface (GUI)
• Hierarchical pull-down menu for all operations with short cut keys
• Zoom, Pan and Measurements options
• Data logging, storing with date & time stamp, compatible for processing in MS-EXCEL
• Status log and diagnostics
• Read from stored file and printing options
