Multi Channel Data Logger / Scope – “LoggerScope”

What is “LoggerScope”?

Oscilloscopes & Data Loggers are the most important test equipment’s used for Monitoring, Analysis, Testing & Trouble Shooting of electronic circuits and control systems.

Conventional data loggers are generally of 8 or 10-bit resolution with low sampling rate of 1 to 10 samples/sec. Further these data loggers are dedicated to monitor specific type of signals like temperature, humidity, pressure etc.,

Although analog or digital scopes are available in the market with high sampling rates (up to 1Gs/s), but can monitor only 2 channels and can not store data for long intervals.

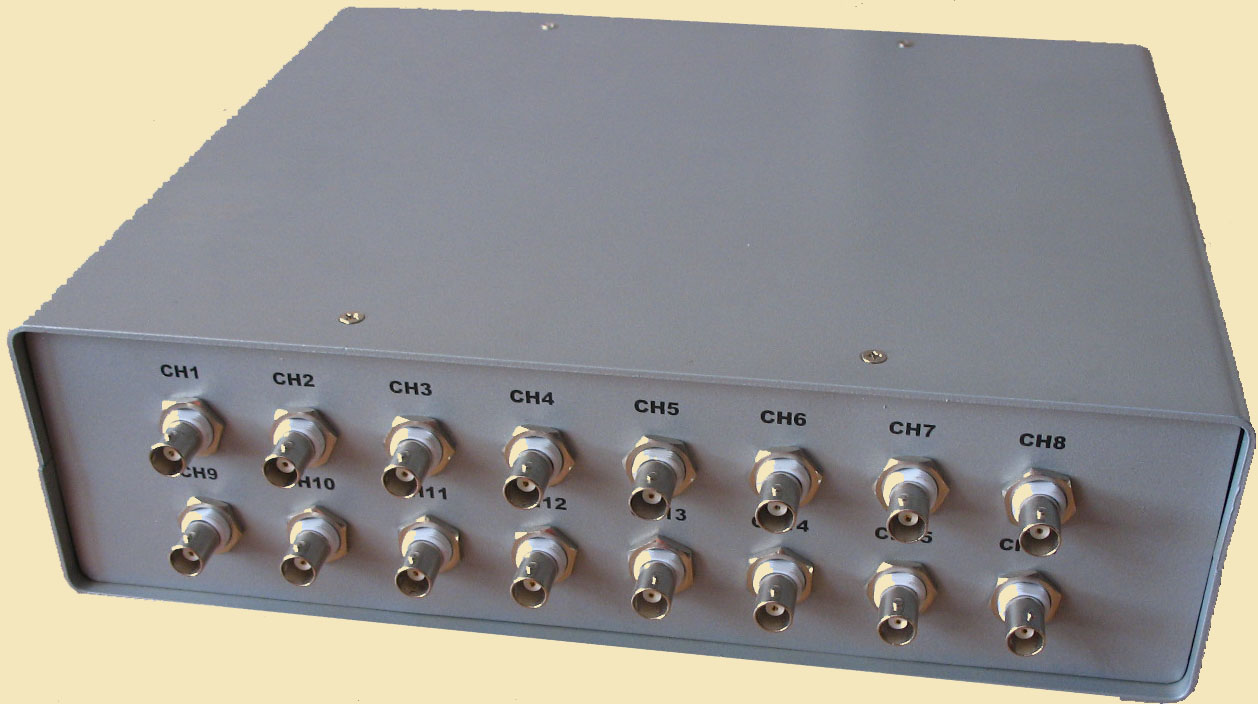

“LoggerScope” was developed by BaHN to bridge the two extremes. It can monitor / store data from 8 or 16 or 32 channels simultaneously at high sampling rates with measurements & GUI features of an oscilloscope.

Benefits from “LoggerScope”

• Monitor and store data from 8 or 16 or 32 channels simultaneously
• Proven USB based NI DAQ hardware
• 16-bit Resolution, 250KS/s or Higher

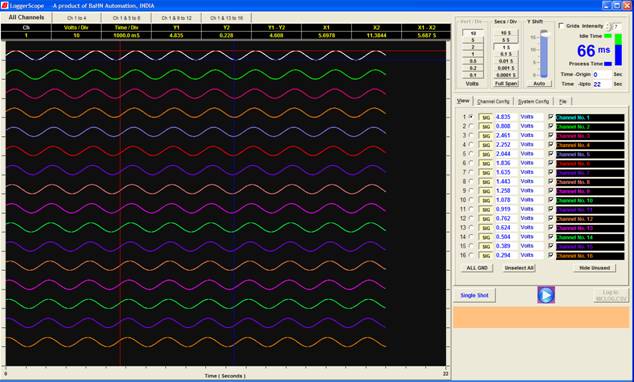

• Simple Graphic User Interface (GUI)
• Powerful & flexible software with all features configurable by user
• Unique “Process Time Meter” concept for optimum performance
• Settable sampling rate based on number of channels monitored and their bandwidth
• Storing and retrieval of acquired  data of all channels in CSV file format
• Pan / Zoom options for analysis of plotted channels
• Industrial grade construction & portable

Main Features :

• Based on NI USB DAQ hardware, 16-bit ADC,  250kS/s or higher
• Simultaneous monitoring 8 /16 / 32 channels and up to 6-pages of display channels.
• Number of channels / page, sampling rate, update time etc., can be configured
• Extensive configuration features for plot channels viz Plot channel name, color, style and background color.
• Extensive analysis features for plot channels viz Pan, zoom and X/Y–axis measurements.
• Roll mode or single shot mode of operation  with full span option
• Storing/retrieval of acquired data from all channels in CSV file format
• PC Monitor as Graphical User Interface (GUI)
